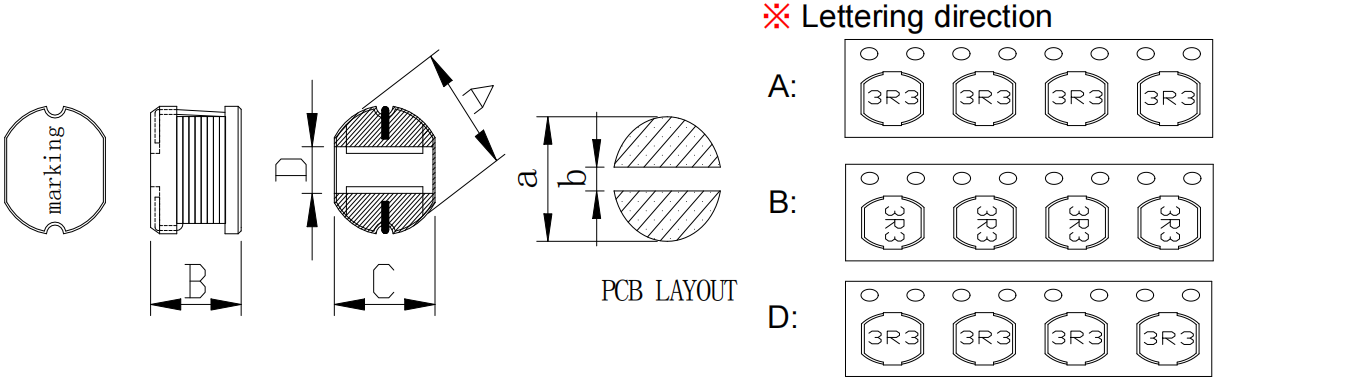

| Series Name | A | B | C | D | a | b | |||
| FHWCD3521 | 3.5±0.3 | 2.1±0.3 | 3.0±0.3 | 1.25 Ref | 4.5 | 1.0 |
| 规格型号 | 电感值(uh) | DCR(Max)直流电阻 | IDC(Max)额定电流 | 测试频率（Khz) | 规格型号 | 电感值(uh) | DCR(Max)直流电阻 | IDC(Max)额定电流 | 测试频率（Khz) |
| FHWCD3521-R56MB | 0.56 | 0.023 | 4.00 | 100/0.25V | FHWCD3521-150KB | 15 | 0.400 | 0.75 | 100/0.25V |
| FHWCD3521-1R0MB | 1.0 | 0.040 | 3.20 | 100/0.25V | FHWCD3521-180KB | 18 | 0.480 | 0.70 | 100/0.25V |
| FHWCD3521-1R5MB | 1.5 | 0.055 | 2.80 | 100/0.25V | FHWCD3521-220KB | 22 | 0.580 | 0.60 | 100/0.25V |
| FHWCD3521-2R2MB | 2.2 | 0.070 | 2.50 | 100/0.25V | FHWCD3521-330KB | 33 | 0.920 | 0.55 | 100/0.25V |
| FHWCD3521-2R7MB | 2.7 | 0.078 | 2.00 | 100/0.25V | FHWCD3521-420KB | 42 | 1.200 | 0.50 | 100/0.25V |
| FHWCD3521-3R3MB | 3.3 | 0.090 | 1.83 | 100/0.25V | FHWCD3521-470KB | 47 | 1.270 | 0.45 | 100/0.25V |
| FHWCD3521-3R9MB | 3.9 | 0.125 | 1.60 | 100/0.25V | FHWCD3521-680KB | 68 | 2.000 | 0.30 | 100/0.25V |
| FHWCD3521-4R7MB | 4.7 | 0.140 | 1.50 | 100/0.25V | FHWCD3521-101KB | 100 | 2.800 | 0.20 | 100/0.25V |
| FHWCD3521-6R8MB | 6.8 | 0.230 | 0.95 | 100/0.25V | FHWCD3521- | ||||
| FHWCD3521-8R2MB | 8.2 | 0.250 | 0.92 | 100/0.25V | FHWCD3521- | ||||
| FHWCD3521-100KB | 10 | 0.270 | 0.90 | 100/0.25V |
